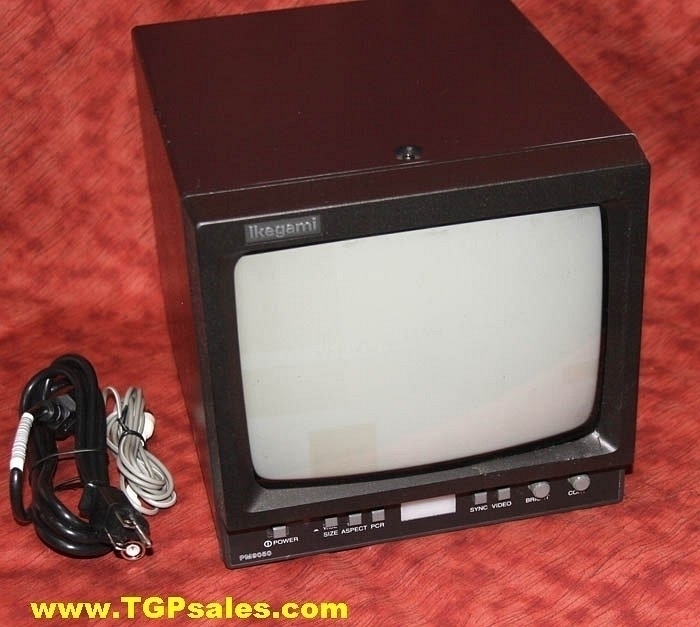

Used black & white studio video monitor in good working condition. 9" dia screen. Solid state (no tubes other than the picture tube) High resolution (800 lines)

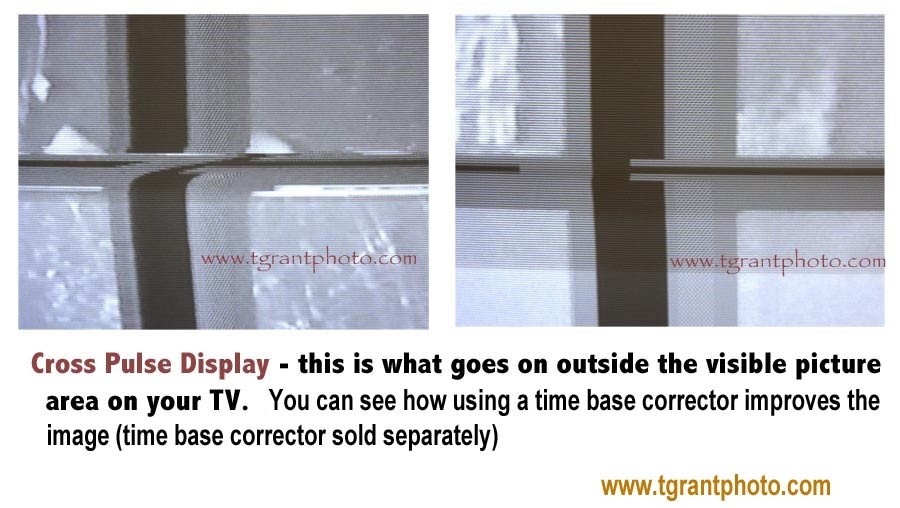

Measuring only about 8.5in x 8.5in x 11in deep, this takes up very little space in you editing set-up, yet provides some very important monitoring abilities! The advantage of owning this monitor is that it displays the video pulse-cross. When you view the pulse-cross you can see a portion of the video image that's not seen on regular TV sets. The pulse-cross is very helpful during VCR playback since it shows video head switching position; horizontal and vertical sync pulses; playback tape errors; skew and tracking adjustments; and improvements made by your time base corrector. If you're transferring a lot of VHS tapes to digital, a pulse-cross monitor is an important piece of equipment to own! Note: You don't need a color monitor when viewing the pulse cross, you can see all the available parts of the pulse cross with this B/W high-resolution monitor.
Note: this is a black & white video monitor and does not have audio connections.
Condition: Cabinet is in good shape with the exception of some minor scuffs or light scratches on the metal cover. The unit you receive might have a different serial number from the unit in the photos, but is in the same good working condition.
10 day return policy (see below)
Monitor info:

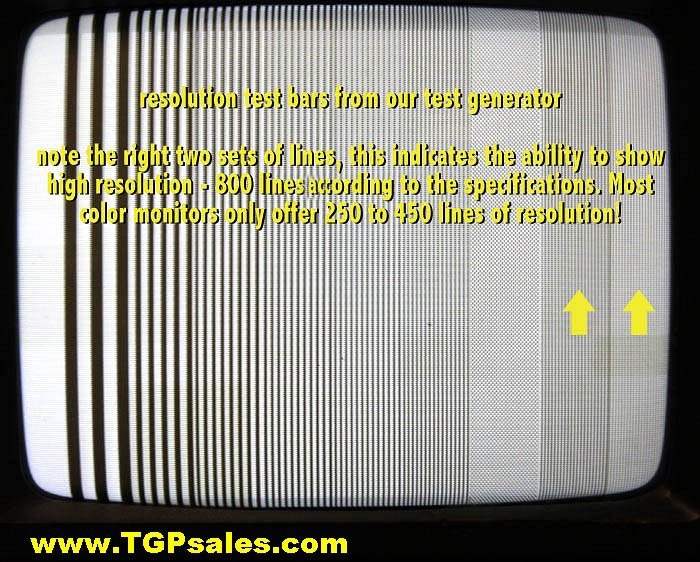

800 lines resolution
Front panel switches:

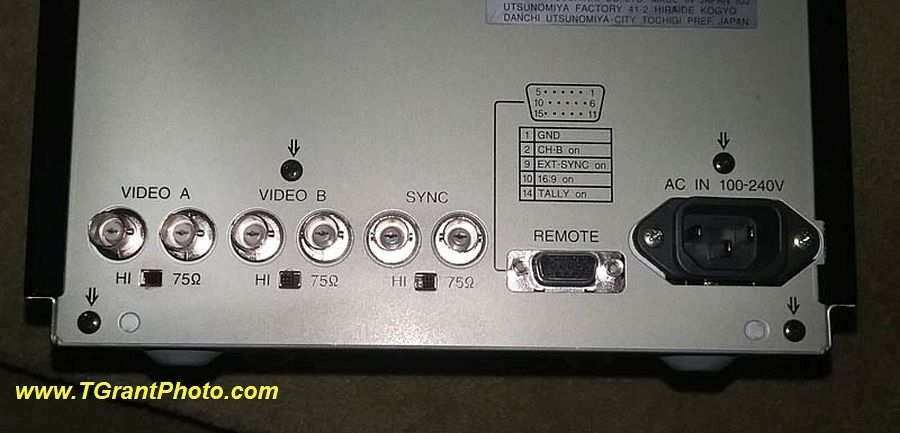

A/B video input - choice of two inputs for standard composite video (BNC in), switchable from the front control panel
Pulse-cross mode - allows horizontal and vertical intervals to be displayed at the center of the screen so you can examine data in the blanking area and sync/burst timing. Ideal for viewing the improvement your time base corrector makes to the video image
Underscan on-off - shows entire active video image
Aspect Ratio - changes the aspect ratio to allow you to watch widescreen movies
Tip: if you're dubbing videotapes using s-video cables, you can connect this monitor to the RCA composite "out" of your capture device so you can monitor the pulse cross. By viewing the pulse cross you can view tracking, head switching, and possible skew errors.
This monitor includes: original power cord; one BNC to RCA adapter, one RCA to RCA cable. No instruction book, however you can call our technician if you have operation/hookup questions.
10 day return policy (see below) you must pay return shipping
size: 8.5"wide x 8.5" tall x 11" deep shipping weight 14 lbs
